Soft Start Portable Plate Chamfering Machine Stable Operation 2450W 220V
Main performance of the product
PB-15 multifunctional groove machine is suitable for processing before welding groove (can
be processing into K,V,X,Ytype groove),can be carried out on the plate groove processing and
metal materials burring ,etc.lts wersatility and flexibility and can be a lot of improve the
efficiency of work and make it become the attrcetive device ,the machine structure is compact
,to where the environment is complex and difficult to machining operations.
| PB-15 |
| Voltage | 220-240V |
| power | 2450W |
| Rotation | 2500-7500 r/min |
| Beveling angle | 20°-60°(standard 30°) |
| Beveling Width | 1-15mm(Q235) |
| Security | Soft start |
| Tool Bit Qty | 4/5 |
| Weight | 8.5Kg |
Product interpretation
Powerful function: it adopts profile design, suitable for plane, inner and outer wall of pipeline, inner and
outer arc and irregular edge shaping of complex curve, multi-functional application of profile
Product features: reverse positioning self-locking ring number, digital scale fine adjustment groove

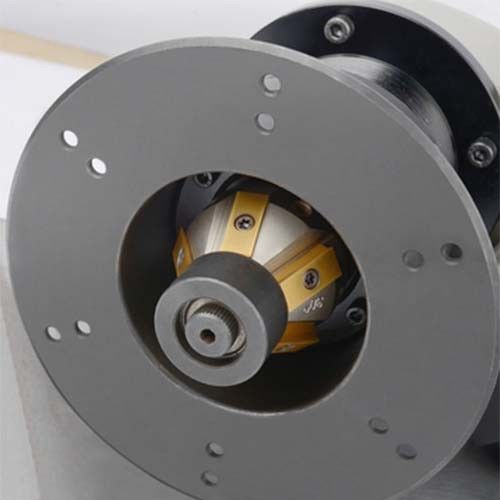

quantity. Chamfering effect slippery, smooth finish, integrated Angle - phase milling cutter disc matching 4
- edge alloy milling cutter. All kinds of arc-edge operation can be applied by the flexible body and wheel.
Wide application: steel structure, steel plate, boiler manufacturing, environmental engineering, bearing,
pipeline engineering, flange and all kinds of cast iron, parts chamfering.
Pipe cutting is the prior process of welding, so the quality of cutting directly affects whether the welding
can be carried out smoothly. Groove cutting is one kind of cutting, also called groove cutting. That is to
cut the plate to make good welding groove, so that the product can be welding through, welding.
Introduction and advantages
Portable multi-function groove machine for the plate groove, chamfer design, is a kind of hand push type
machining tools, the design of the cutting tools, can not only processing flat mouth straight slope, but also
according to different shape, plate edge processing groove, or round hole edge chamfer on board
processing, the machine is light weight small size, convenient to carry, simple manipulation. Technical
parameters: the power supply of 230 v / 50 to 60 hz motor 2 kw of 2000-5000 RPM round hole small
diameter of 50 mm size groove width (using the 45 degree Angle) 15 mm feed quantity 0.5-10 m/min * 22
groove Angle. ,30,37.5 5, 45, 60 degree Angle need other customized processing small thickness of 1.5
mm plate thickness weight 8.5 Kg specifications 461 * 140 * 256 mm note: "*" depends on the groove
width and processing material product features: v according to different Angle cutter, complete different
Angle groove, commonly used is 22.5, 30,37.5, 45, 60 degrees, and the other point of view can be
customized. V each cutting head is equipped with 5 grain of carbide blade, each blade has four parts, a
set of blade, blade can follow change use 4 times. V temperature protection, and electronic speed control,
the board that can process different materials. V small volume, light weight, easy to carry, easy to operate.
Features of multi-function chamfering machine:
The manual drive chamfering tool and high speed milling form groove edge.
"Industrial motor, power large vibration small applicable plate, pipe wall.
The irregular edge plane edge of complex curve of internal and external arc machine is applicable for
copying.
With industrial motor, high power vibration and small temperature rise protection, grade B insulating fan
type self-cooling can process diversified materials.
Is easy to carry, safe to operate, simple to adjust, automatic chip discharge, alloy milling cutter, low cost.
With multi-grain milling cutter, high-speed cold cutting, the groove surface c0-c10mm can be precisely
adjusted by: K /V groove
