Hydraulic Driven 1.8kw 8r/Min Pipe Cutting Beveling Machine

  • 1
  • 2

Brand Name : Wellnit

Model Number : OCH

Certification : ISO9001 ; CE

Place of Origin : China

MOQ : 1set

Price : $2280

Payment Terms : T/T

Supply Ability : 15set/month

Delivery Time : within 7days

Packaging Details : Plywood

tool holder choose : standard , heavy , tracking , bridge etc

Power Suppy : 220V 50Hz 1.8-2KW

Driven : OCH

Rotation Speed : 8-42r/min

Hydraulic Station : Standard or PLC

Contact Now

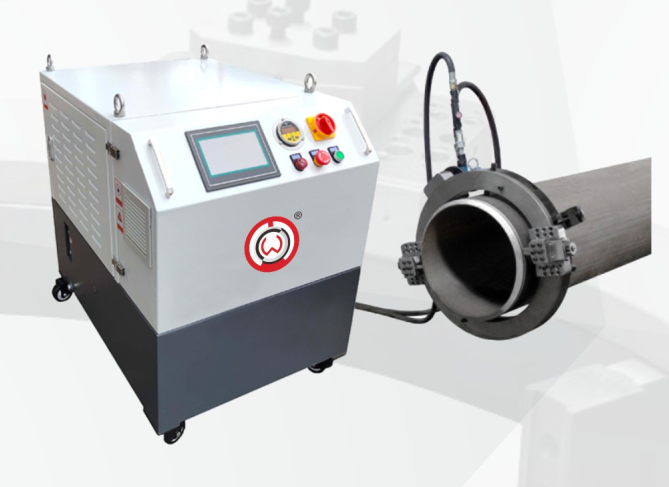

Hydraulic Driven Pipe Cutting Beveling Machine High Precision

Product Performance

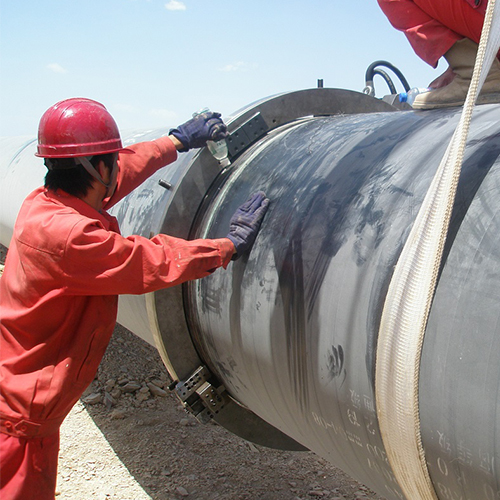

The series machine is OD mounted machine, According to pipe outside diameter size to choose suitable model. split frame type make machine can install pipe any position. Compact design make machine portable , light weight. The machine can only cutting , only beveling , can cutting and beveling at same time. More efficiency. The machine working direction can not be limited. Vertical, horizontal , reverse etc.

Hydraulic Driven 1.8kw 8r/Min Pipe Cutting Beveling Machine

Hydraulic Driven

Hydraulic Station Specification:

Power Supply:380-440V 3PH 50/60Hz

5-30L/Min @ 10MPa

Advanatage

Powerful Driven, High Efficiency

Stable Performance

Low Noise

PLC control

Eletronic Display

Remote Control Adjustable Speed

Ideal for heavy wall thickness & large size pipe

Hydraulic Driven 1.8kw 8r/Min Pipe Cutting Beveling Machine


Tool Holder Choose


Name


Standard Tool Slide

achieve cut/bevel up to 30mm

 Hydraulic Driven 1.8kw 8r/Min Pipe Cutting Beveling Machine

Heavy wall Tool Slide

achieve cut/bevel up to 70mm

 Hydraulic Driven 1.8kw 8r/Min Pipe Cutting Beveling Machine

Bridge Tool Slide

achieve cut/bevel up to 100mm in multi passes,
also can process flange facing

Hydraulic Driven 1.8kw 8r/Min Pipe Cutting Beveling Machine

Tracking Tool Slide

O.D tracking slide compensate for out of round
pipe travel along the O.D makes the bevel face
balanced usually apply on large size diameter pipe

 Hydraulic Driven 1.8kw 8r/Min Pipe Cutting Beveling Machine

Bevel Type

Hydraulic Driven 1.8kw 8r/Min Pipe Cutting Beveling Machine

Specification

Hydraulic Driven 1.8kw 8r/Min Pipe Cutting Beveling Machine

Order Guide

  • pipe size (O.D) :
  • pipe thickenss :
  • pipe material :

I will recommend suitable machine for you!
